A pair of HDMI to Fiber Optic Transceivers, HDMI 1.4
● Full HD 4Kx2K 3D ● Extend HDMI reach to 300m on Multi-mode fiber ● Compatible with HDMI 1.4 ● 10Gb/s Transceivers ● Dual LC MMF fiber ● Warranty: 1-Year
HDMI Active Optical Cables Multimode Fiber Optic HDMI Extender
Description The F-tone Networks HDMI Cable is a kind of Active Optical Cable (AOC) used to extend the transmission distance between HDMI Source and Sink devices. The transmission distance can be up to 100m (330ft) through a hybrid cable consisting of optical fibers and copper wires.
HDMI AOC, Full Optical Cable, 10-meter, Support HDMI 1.4, HDMI 4K 30Hz
● Support HDMI 1.4, 3D and 4Kx2Kx30; ● All optical cable(OM3) with ourter diameter of 4.5 mm; ● Plug and play; ● Support image transmission without signal compression and high quality of image without distortion; ● Be able to read EDID;
HDMI AOC, Full Optical Cable, 30-meter, Support HDMI 1.4, HDMI 4K 30Hz
● Support HDMI 1.4, 3D and 4Kx2Kx30; ● All optical cable(OM3) with ourter diameter of 4.5 mm; ● Plug and play; ● Support image transmission without signal compression and high quality of image without distortion; ● Be able to read EDID;
HDMI AOC, Full Optical Cable, 50-meter, Support HDMI 1.4, HDMI 4K 30Hz
● Support HDMI 1.4, 3D and 4Kx2Kx30; ● All optical cable(OM3) with ourter diameter of 4.5 mm; ● Plug and play; ● Support image transmission without signal compression and high quality of image without distortion; ● Be able to read EDID;
HDMI AOC, Hybrid Copper Optical Cable, 10-meter, Support HDMI 2.0 and HDCP 2.2, HDMI 4K 60Hz
● Support HDMI 2.0 & HDCP 2.2; ● Hybrid Copper Optical Cable, external power supply not needed; ● Operates on MMF(OM3), with a low-smoke zero-halogen jacket(LSZH); ● Provides image transmission without signal compression; ● Space Saving: Cable outer diameter is only 4.2mm.
HDMI AOC, Hybrid Copper Optical Cable, 15-meter, Support HDMI 2.0 and HDCP 2.2, HDMI 4K 60Hz
● Support HDMI 2.0 & HDCP 2.2; ● Hybrid Copper Optical Cable, external power supply not needed; ● Operates on MMF(OM3), with a low-smoke zero-halogen jacket(LSZH); ● Provides image transmission without signal compression; ● Space Saving: Cable outer diameter is only 4.2mm.
HDMI AOC, Hybrid Copper Optical Cable, 20-meter, Support HDMI 2.0 and HDCP 2.2, HDMI 4K 60Hz
● Support HDMI 2.0 & HDCP 2.2; ● Hybrid Copper Optical Cable, external power supply not needed; ● Operates on MMF(OM3), with a low-smoke zero-halogen jacket(LSZH); ● Provides image transmission without signal compression; ● Space Saving: Cable outer diameter is only 4.2mm.
HDMI AOC, Hybrid Copper Optical Cable, 30-meter, Support HDMI 2.0 and HDCP 2.2, HDMI 4K 60Hz
● Support HDMI 2.0 & HDCP 2.2; ● Hybrid Copper Optical Cable, external power supply not needed; ● Operates on MMF(OM3), with a low-smoke zero-halogen jacket(LSZH); ● Provides image transmission without signal compression; ● Space Saving: Cable outer diameter is only 4.2mm.
HDMI Extender 164-Ft (50M) over RJ45 CAT5e Cable with Loseless Transmission, Supports Full HD 1080P 3D Loop out
●Extends 1080P resolution up to 164-Ft (50M) over a single CAT5e cable. ●Using uncompressed technology for lossless audio transmission. Supports 1080p@60Hz video resolutions. ●Compatible with PC, DVD, game console, Blu-ray player, media player, satellite box etc. ●The designed equalizer (EQ) can be adjusted to reach the best transmission function according to the length of HDMI. ●Supports bi-directional IR pass back from each side.
HDMI Extender 328-Ft (100M) over RJ45 CAT5e Cable, Supports 1080P Full HD 3D
● Extends 1080P resolution up to 328-Ft (100M) over a single CAT5e cable. ● Supports TCP/IP. Extends HDMI signal unlimitedly over router, hub and switch. Maximum connecting 253 receivers. ● Using uncompressed technology for lossless audio transmission. Supports 1080p@60Hz video resolutions. ● Compatible with PC, DVD, game console, Blu-ray player, media player, satellite box etc. ● Supports bi-directional IR pass back from each side.
●Extends full HD 1080P@60Hz up to 230-Ft (70M) and 4K@60Hz YUV4:2:0 up to 131-Ft (40M) over a single CAT6 cable. ●HDBaseT uncompressed technology for lossless audio transmission. Supports HDMI1.4 and HDMI2.0 (4K@60HZ with 4:2:0). ● Compatible with PC, DVD, game console, Blu-ray player, media player, satellite box etc. ● Ventilation structure, metal housing with ventilating holes. ● Supports bi-directional IR pass back from each side.
●Extends full HD 1080P@60Hz up to 230-Ft (70M) and 4K@60Hz YUV4:2:0 up to 131-Ft (40M) over a single CAT6 cable. ●HDBaseT uncompressed technology for lossless audio transmission. Supports HDMI1.4 and HDMI2.0 (4K@60HZ with 4:2:0). ● Compatible with PC, DVD, game console, Blu-ray player, media player, satellite box etc. ● Ventilation structure, metal housing with ventilating holes. ● Supports bi-directional IR pass back from each side.
Description： The FT-HDMI-10KM-A have a serializer to transform the 4x TMDS signals into a10.3Gb/s serial high-speed data, and converted into light pulses by optical transmitter, it’s wavelength is 1310nm;. The FT-HDMI-10KM-A also has an optical receiver to receive the low data rate optical pulses signal with 1550nm wavelength; its data rate is 250Mb/s.
Description： The FT-HDMI-10KM-TA have a serializer to transform the 4x TMDS signals into a10.3Gb/s serial high-speed data, and converted into light pulses by optical transmitter, it’s wavelength is 1310nm.
● Support uncompressed HDMI 1.4a signal transmission ● Standard SFP+ port ● HDMI converters for DVD or TV ● 300-meter to 80km SFP+ transceivers for optional ● Data rates: 10Gbps
乐天堂专业研爆发产(天下产化可选):Mini SAS HD 4x Active Optical Cables,Mini SAS HD 4x Active Optical Cables海量交付给国防、军工、航空、航天、武器、舰船、雷达、电子、核工业、军事、电力、铁路、医疗、交通、通讯、电信、政府、国防科技工业系统内大专院校及科研院所

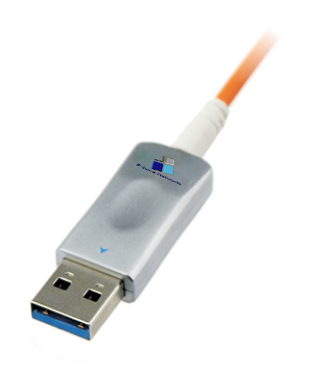

Description F-tone Networks USB 3.0 AOC is consisted of two USB3.0 Standard-A connectors and multimode optical fiber, and each end has IC/VCSEL/PD, to complete the OE & EO conversion.
Description The F-tone Networks USB 3.1 AOC Cable is a kind of Active Optical Cable (AOC) used to extend the transmission distance between USB Hosts and Devices and consisted of two USB 3.1 Standard-A connectors.
[HDMI to SFP+ Converter (A pair)] + [2x SFP+ LR Lite] Kit1
● Support uncompressed HDMI 1.4a signal transmission ● Standard SFP+ port ● HDMI converters for DVD or TV ● 300-meter to 80km SFP+ transceivers for optional ● Data rates: 10Gbps
[HDMI to SFP+ Converter (A pair)] + [2x SFP+ LR] Kit1
● Support uncompressed HDMI 1.4a signal transmission ● Standard SFP+ port ● HDMI converters for DVD or TV ● 300-meter to 80km SFP+ transceivers for optional ● Data rates: 10Gbps
